    220V 300W Ceramic ignition resistance for thermo stoves and pellet boilers

    220V 300W Ceramic ignition resistance for thermo stoves and pellet boilers

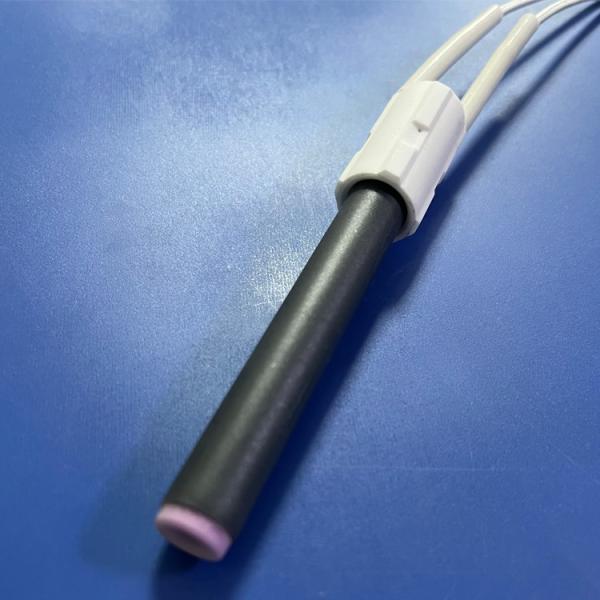

    CERAMIC IGNITION RESISTANCE

    Introducing the Kairui ceramic biomass igniter range, an advance in ignition technology for solid wood fuels. Ceramic Igniter for pellet stoves, designed to ignite wood pellets and wood chips in stoves, boilers and burners. Tested for more than 10,000 ON/OFF cycles, with rapid ignition times.


    Kairui KRHX-ST series ceramic igniters revolutionize biomass heating appliances ignition process. It consume less energy (300W) compare to tradionatl metal cartridge igniter but reach 1000°C at steady-state temperature allowing an ignition of 60~90 seconds.



    Specification

    KR SeriesSpecificationDimensionMax. Dia. FlangeMax Temperature
    KR-ST220V
    250-300W
    11.5 x 93 mm17.5 mm1020 Deg.C
    KR-ST220V
    250-300W
    11.5 x 106 mm17.5 mm1020 Deg.C
    KR-ST220V
    250-300W
    11.5 x 115 mm17.5 mm1020 Deg.C

    Product dimension

    220V 300W Ceramic ignition resistance for thermo stoves and pellet boilers

    Product Property

    Properties

    Value


    Condition
    VoltageAC220V50/60 Hz
    Power consumption300 W (AC220V)in free air environment
    Cold resistance value40.15~49.13Ω

    23±1°C ambient temperature


    Rising time>820°℃ within 60s. Max temperature of 1000°C after 120s23±1°C ambient temperature
    Minimum Wattage250W at 230V
    Minimum temperature870℃
    Insulation resistance>50MΩApplied at both side of Heating element DC500V at normal temperature and humidity
    Withstand voltage

    Current Leakage ≤5 mA


    Applied at both side of
    Heating element AC 1500V for 1 s at normal temperature and humidity rate

    Caulking strength

    (Nickel wire and lead wire)

    ≥29.4 N(over 3kg f)The nickel wire has been clamp and the lead part has been tested with push-pull gauge.
    Discontinuous conduction (heating element)Without breakingApplied at 264V for 4min On/5min Off (forced cooling) for over 3000 cycles

    Test condition:
    All values have been measured in the same condition as follow:

    Temperature:23±1°C

    Humidity rate:25~80%

    Installation prohibition

    Design your system so that the lighter heating element never comes into direct contact with solid fuel or ash or metal protective tube. If the heating element comes into contact with solid fuel, ash or protective metal, it could damage the heating element. A longer buffer tube should be considered to avoid this situation.


    PRODUCT-PACKAGE

    Export standard, 100% no damage

    Economical Packing- Ceramic igniters are packed in cartons, each box contains four boxes, each box contains 33 pieces, each igniter is wrapped in pearl cotton. Each carton contains 132 pieces.


    Each igniter is individually packaged -
    A - Ceramic igniters are packed in cardboard boxes, each box contains four boxes, each box contains 15 pieces, each igniter is wrapped in pearl cotton and packed into individual small cartons. Each carton contains 60 pieces.
    B- Ceramic igniters are packed in cartons, each igniter is wrapped in pearl cotton and packed into individual small cartons, the carton is surrounded by pearl cotton boards, each carton contains 90 pieces.


    DELIVERY
    Delivery Time:3-15days.


    Meanwhile, other shipping ways are available such as FedEx, UPS, TNT, EMS, China Post or Sea. Just let us know which one is best for you, we do all the best work.



    Shaanxi Kairuihongxing Electornic Co.,Ltd specialises in ceramic hot surface igniters and has many years experience of working closely with customers to develop bespoke solutions for innovative appliance manufacturers. Kairui are a trusted manufacturer of hot surface ignition products to many industry sectors. If you are interested of our products or would like to discuss a custom order, please feel free to contact us. We are looking forward to forming successful business relationships with new clients around the world in the near future.
